R801 Tube Hi-Fi Stereo Classic Radio AM/FM Short Wave Tube Radio also can be used as an integrated tube radio -- you can hook speakers to this unit ....... Features:
- With 7 pcs of Vacuum Tube improves "Digital Sound" effectively
- Stereo Sound with excellent effect
- FM / AM / SW1 / SW2 function
- Magnetically shielded drivers, virtually eliminates monitor and TV screen interference.
- All MDF wood enclosures.
- Magic Eye
- Volumes and power switch located on Front panel.
- Unique, Classical & Elegant appearance.
- Exclusive product unique worldwide
- High quality and good price
- Can be used as a separate tube amplifier.
Specifications:
Receiving Scope:
- AM Scope:535KHz~1610KHz
- FM Scope:: 88 MHz~108MHz
- SW1 Scope:: 4.5MHz~12.5MHz
- SW2 Scope:: 12.5MHz~22MHz
Tube Amplifier :
- Output Power: = 2x18W (1KHz THD=10%)
- Frequency Response:30Hz~20KHz
- AM?SW Frequency Response:60Hz~8KHz (+3/-5dB)
- FM Frequency Response:60Hz~15KHz (+3/-5dB)
- Vacuum Tube: 6L6×4 6F2×2
- 6E2(Magic Eye)
Speaker Unit:
- Bass Speaker Size: 2 x 5.25"
- Treble Speaker Size: 2 x 1"
- Speaker Rated Power:=20W
- Speaker Impedance: 8O
- Speaker Frequency Response:80Hz~15KHz
- Input Port: CD (DVD) Aux RCA in

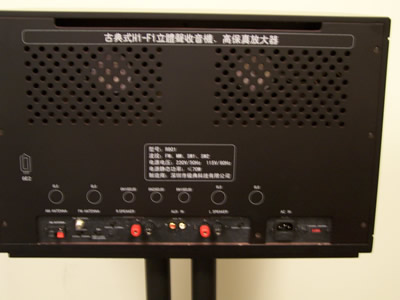

- Output Port: Earphone Out, Rec. Out & 2.0 Speaker Out
- Product Size: 54(L) x W33(W) x 25(H) cm
|
|
|
